Ingersoll Rand ZRA1 Overhead Hoist & Jib Trolley Assemblies
$0.00 $43.00

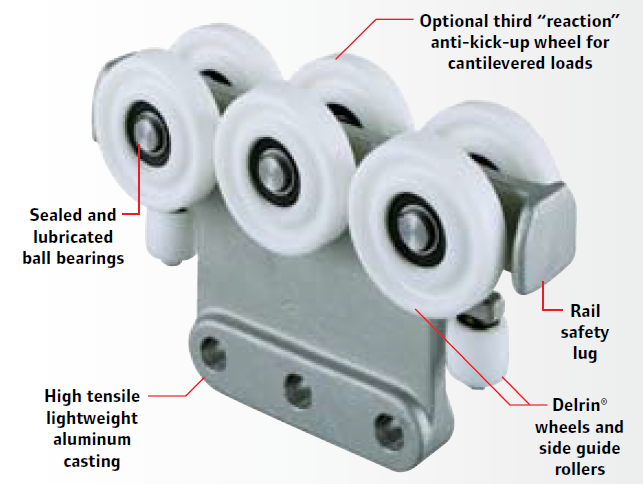

Advanced trolley design:
Ingersoll Rand trolleys are designed to work in conjunction with the enclosed track rail to reduce the rolling effort required to move a load. In fact, only a force equal to 1 percent of the total rolling weight is needed when moving loads.
- Lightweight —Trolleys are made from high-strength, lightweight aluminum castings
- Injection molded wheels —Provide for clean, wear-free operation that resists flattening
- Sealed precision bearings —In wheels and side guide rollers, they provide long life and reduced maintenance
- Rail safety lug —Prevents the body of the trolley from being pulled through the enclosed track rail
- Versatile —Ingersoll Rand-built trolleys are available for use in virtually every manufacturer’s enclosed track rail system
ZRA1 Trolley Assemblies* Please Call OR Email for Current Pricing
| Part # | Description | Capacity lb (kg) |
| 30279 | Trolley - Aluminum - ZRA1 | 500 lbs. |
| 30281 | Trolley - Aluminum - ZRA1 | 500 lbs. |
| ZHS30304 | Load Trolley - Aluminum - ZRA1 | 500 lbs. |
| 30204 | Universal Trolley - Aluminum - ZRA1 | 500 lbs. |
| 30259 | Universal Trolley - Steel - ZRA1 | 500 lbs. |
| 30579 | Festoon Trolley - ZRA1 | 50 lbs. |
| 30307-1200 | Bumper Trolley - ZRA1 | N/A |
| 30307-2400 | Bumper Trolley - ZRA1 | N/A |
| 30307-3600 | Bumper Trolley - ZRA1 | N/A |
| ZHS30313 | Hoist Trolley - Single - ZRA1 | 500 lbs. |
| 30303 | Hoist Trolley - Dual - ZRA1 | 1000 lbs. |
| ZHS30318 | Hoist Trolley Dual - Curved - ZRA1 | 1000 lbs. |
| 54039086 | Delrin Festoon Trolley - ZRA1 | 50 lbs. |
Note: Trolleys DO NOT include safety cables. Capacities based on 5 to 1 safety factor.
IR Ergonomic Handling Catalog or ZRA1 Rail Systems Specification Catalog
