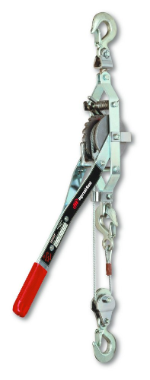

Ingersoll Rand P Series Manual Ratchet Puller // Come Along
$101.00
1000 lb and 2000 lb Capacities They'll pull up to 2,000 lbs with no problem - and no hard work for you, either. Extremely strong and well made, the Ingersoll Rand P-Series pullers are high quality, dependable wire rope pullers for low- and medium-duty pulling and lifting jobs.
| MODELNAME | P15D3H | P15H |
|---|---|---|
| Headroom, in (mm) | 27.5 (698.5) | 19.5 (495.3) |
| Pull to Lift Rated Load, lbs (kg) | 105 (47.7) | 100 (45.5) |
| Shipping Weight, lbs (kg) | 10.5 (4.8) | 8.5 (3.9) |
| Capacity, lbs (kg) | 2000 (909) | 1000 (455) |
| No. of lines | Single | Single |
- 4:1 design factor. Meets Specifications
- Handle and frame are heavy gauge steel with rivet construction and slip-resistant grip. All steel parts are plated for years of useful life
- Exclusive long-life 'buttress tooth' cast gear design has no laminated plates to separate or wear and provides maximum strength
- Sturdy steel drive and holding pawls have long life and stainless steel springs. All pivot points are hardened steel
- Safety latch hooks are drop-forged steel, heat treated and plated for corrosion resistance. Top hook rotates 360° for easy operation
- Galvanized aircraft quality wire rope is pre-formed to prevent kinks
- One year warranty
